Footy-Radio

Footy Radio

An open-source Android radio app tailored for Australian football fans. Stream radio stations and catch live AFL scores — all in one place - with Android Auto support.

Forked from Swift Radio Android by Fethi, built with Kotlin, Jetpack Compose, and Media3.

Features

• Stream radio stations with background playback
• Preloaded with a few Melbourne FM stations

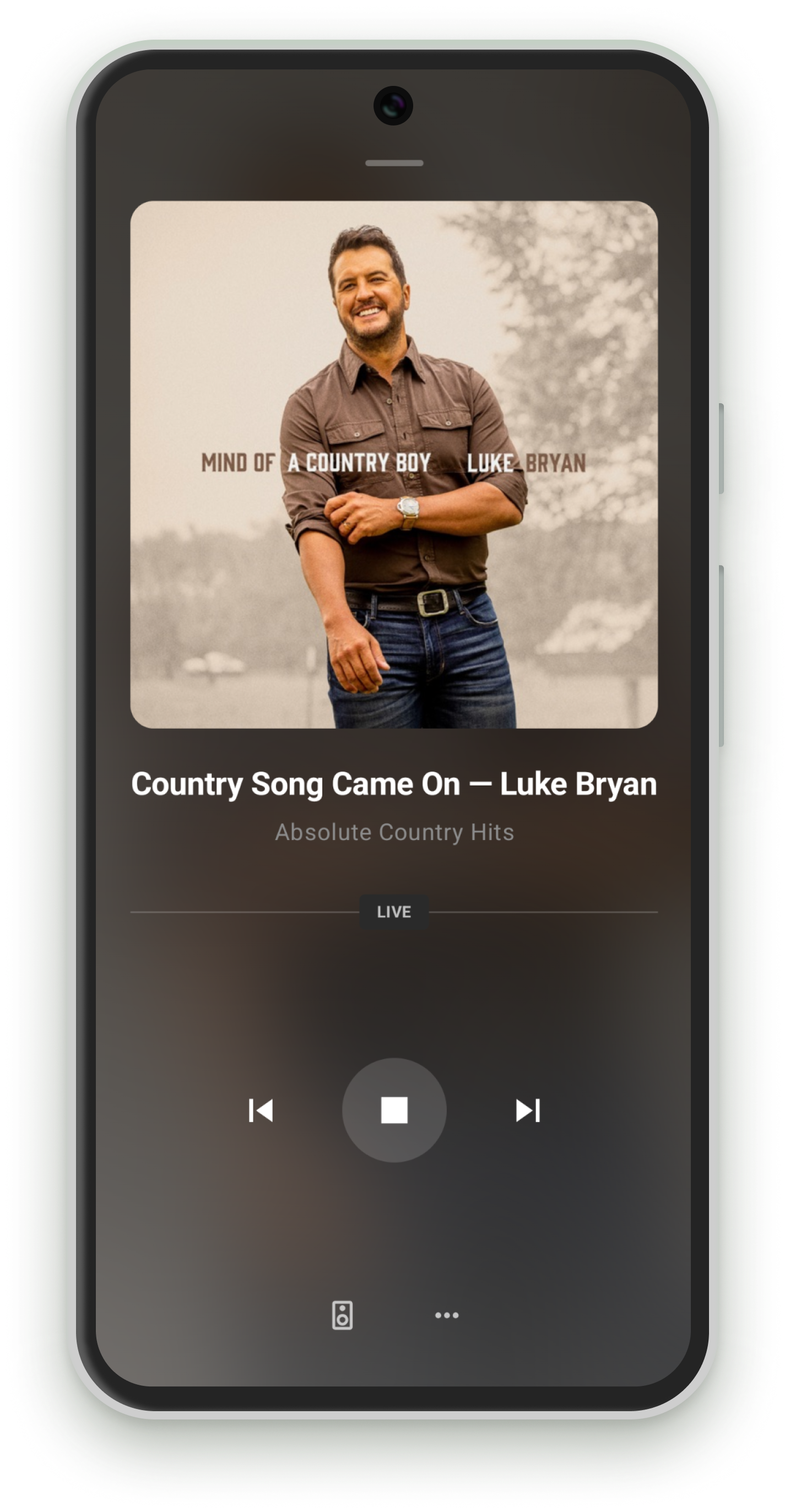

• Live AFL scores on the Now Playing screen, powered by the Squiggle API via real-time SSE updates
• Team logos for all 18 AFL clubs displayed alongside live scores
• Multiple stream URL fallbacks per station for improved reliability
• Album art and track metadata from streams and the iTunes API
• Android Auto integration with browse tree, playback controls, and artwork
• Lock screen and notification controls with artwork

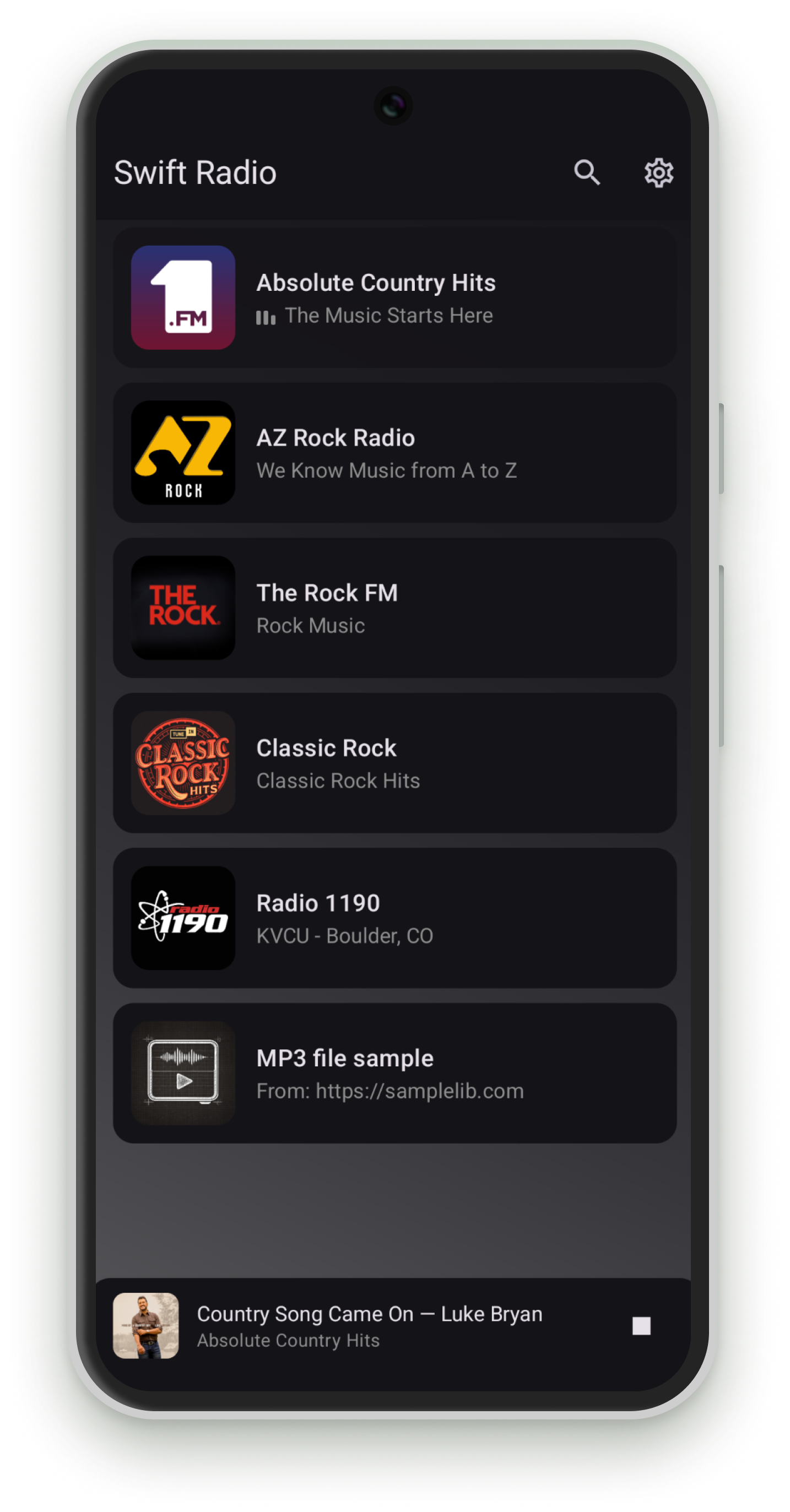

• Search and filter stations by name or description
• Material You dynamic color support on Android 12+
• Localization-ready with all strings extracted to resources

Requirements

• Android 7.0+ (API 24)
• Android Studio

Getting Started

1. Open the project in Android Studio
2. Edit Config.kt to set your stations URL, contact info, and feature flags
3. Replace stations/stations.json with your own stations (hosted or bundled)
4. Build and run

Station Format

Stations are loaded from a remote JSON file hosted at https://markcs.github.io/Footy-Radio/stations/stations.json and user configurable within the app at Config.stationsURL. Each station supports the following fields:

{
  "station": [
    {
      "name": "Station Name",
      "streamURLs": [
        "https://example.com/stream.aac",
        "https://example.com/stream.mp3"
      ],
      "imageURL": "https://example.com/station-image.png",
      "desc": "Short description",
      "longDesc": "Detailed description shown in the station info sheet.",
      "website": "https://example.com"
    }
  ]
}

Field	Required	Description
name	Yes	Station name displayed in the list and player
streamURLs	Yes	Ordered list of stream URLs — the app tries each in turn
imageURL	Yes	Asset filename (without extension) or a full URL
desc	Yes	Short subtitle shown below the station name
longDesc	No	Longer description shown in the station info sheet
website	No	Station website URL shown in the info sheet

Note: streamURLs replaces the original single streamURL field. The app falls back through the list automatically if a stream fails to connect. The legacy streamURL field is still accepted for compatibility.

Configuration

All app-wide settings live in Config.kt:

object Config {
    val gradientColor: Color = Color.White       // Diagonal gradient overlay color
    const val stationsURL = "https://..."        // Remote stations JSON URL
    const val hideNextPreviousButtons = false    // Hide skip controls on the player
    const val enableSearch = true               // Show/hide search bar on station list
    const val email = "contact@example.com"
    const val feedbackURL = "https://..."
    const val licenseURL = "https://..."
    const val shareText = "Check out Footy Radio!"
}

Live AFL Scores

Footy Radio integrates with the Squiggle API to display live AFL scores on the Now Playing screen. Scores update in real time via a Server-Sent Events (SSE) connection that opens automatically around game time and closes when all games for the day are complete.

Team logos for all 18 AFL clubs are bundled in the team-logos/ directory and are displayed alongside the score ticker.

Station Icons

Station artwork is hosted on GitHub Pages at https://markcs.github.io/Footy-Radio/stations/icons/ and referenced directly from the stations JSON. Icons for the included Melbourne stations are provided in the stations/icons/ directory.

Customizing Text and Translation

All user-facing strings are in app/src/main/res/values/strings.xml. To add a new language:

1. Create a new directory: app/src/main/res/values-XX/ (e.g., values-fr for French)
2. Copy strings.xml into the new directory
3. Translate the string values

Android will automatically use the correct language based on the user’s device settings.

Dependencies

Library	Purpose
AndroidX Media3	Audio playback, media session, Android Auto
Jetpack Compose	UI framework with Material 3
Coil	Image loading and caching
Ktor	HTTP client for remote stations and SSE
Kotlinx Serialization	JSON parsing

Credits

• Forked from Swift Radio Android by Fethi
• Live AFL scores via Squiggle

License

Footy Radio is open source and available under the MIT License.
